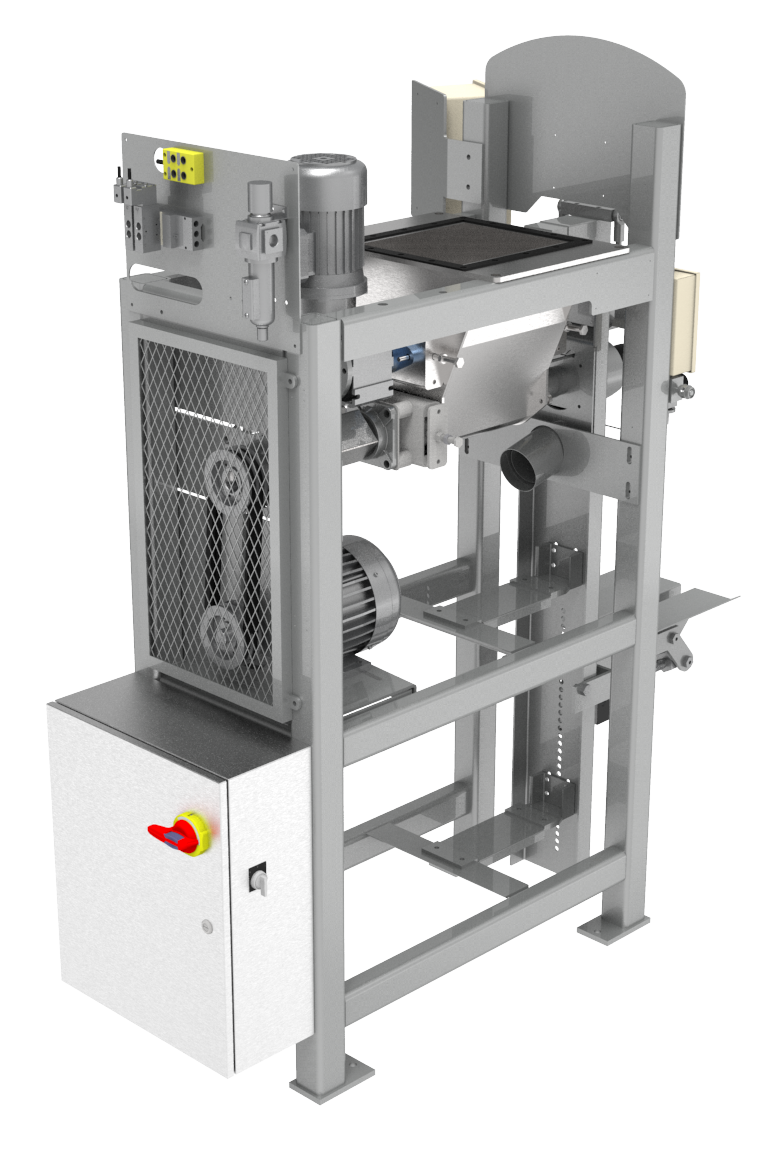

Industrial-Duty Auger Valve Bag Filler
Model 2300

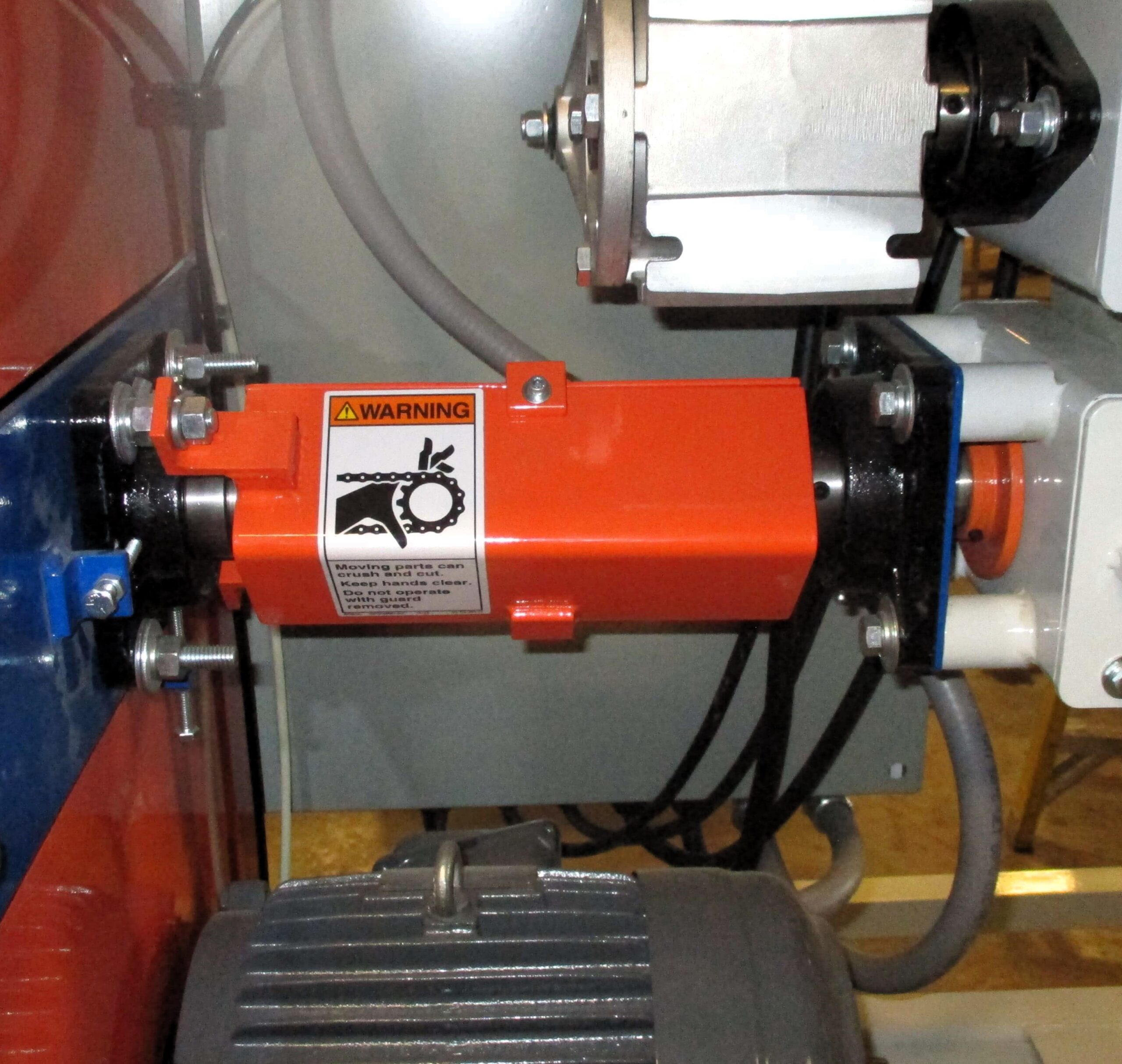

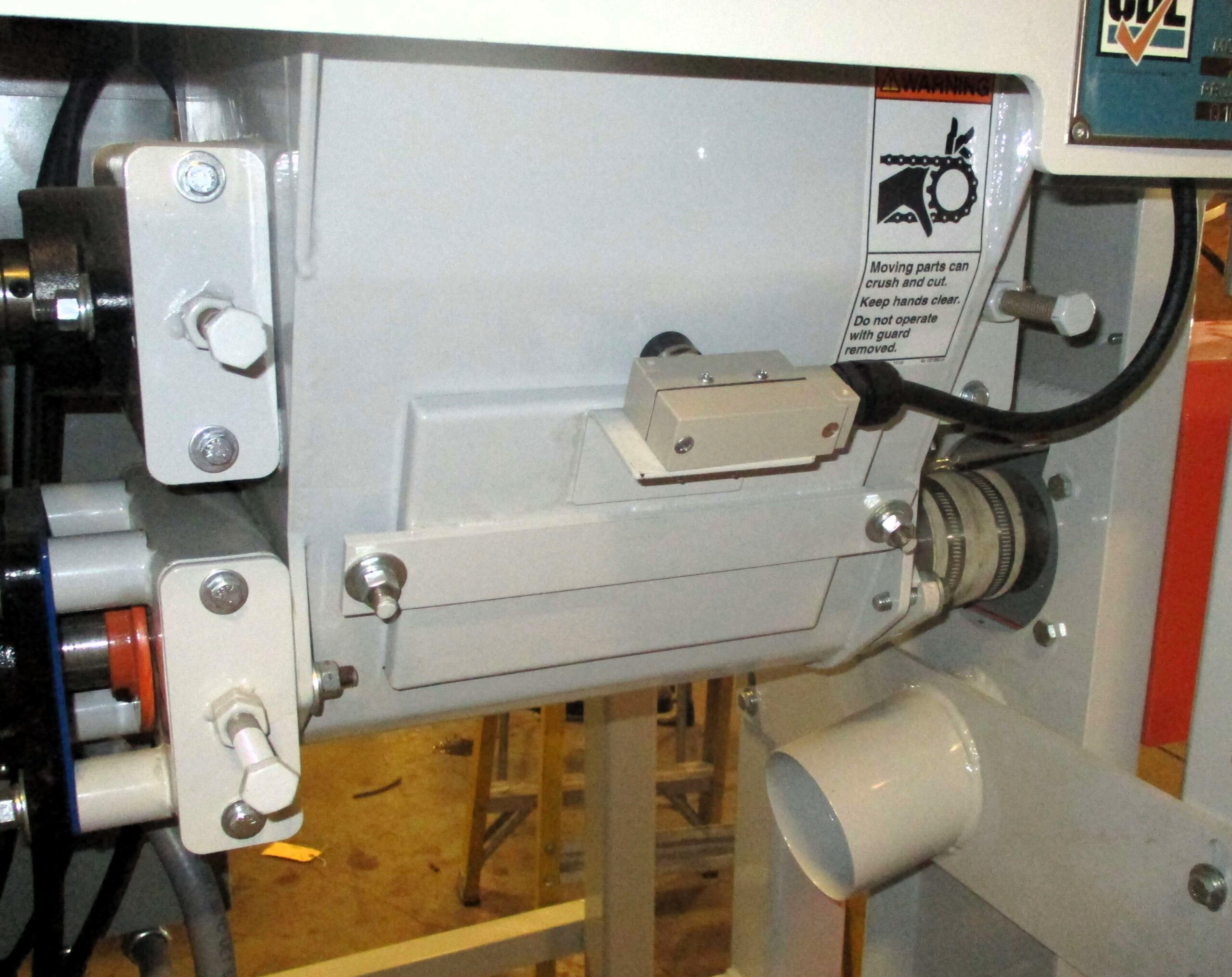

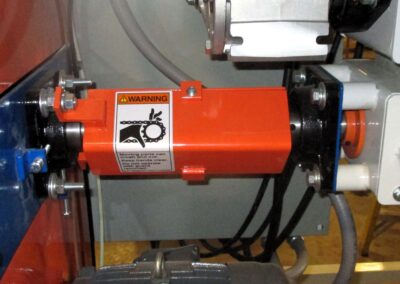

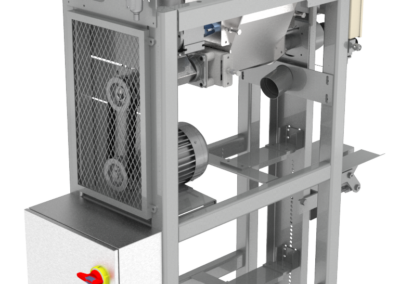

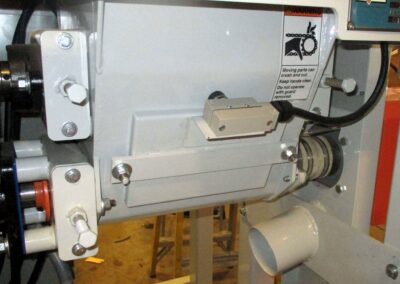

The Industrial Auger Valve Bag Filler is designed to bag an extensive variety of abrasive powders which require a machine that is easy to use, dependable, and durable. To meet these demands, it is constructed with continuously welded thick wall box steel tubing for rugged and continual use. The heavy-duty auger feeder includes low maintenance shaft seals to reliably feed product into bags. A side access door is protected by a safety switch for harm free clean-out and inspection of the interior of the auger feeder.
Click Images for Larger Views
Click to View Video

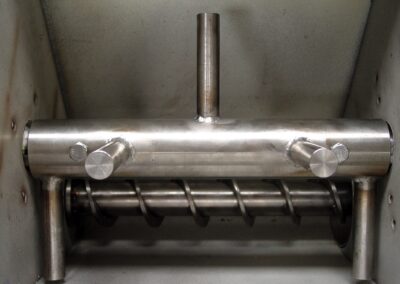

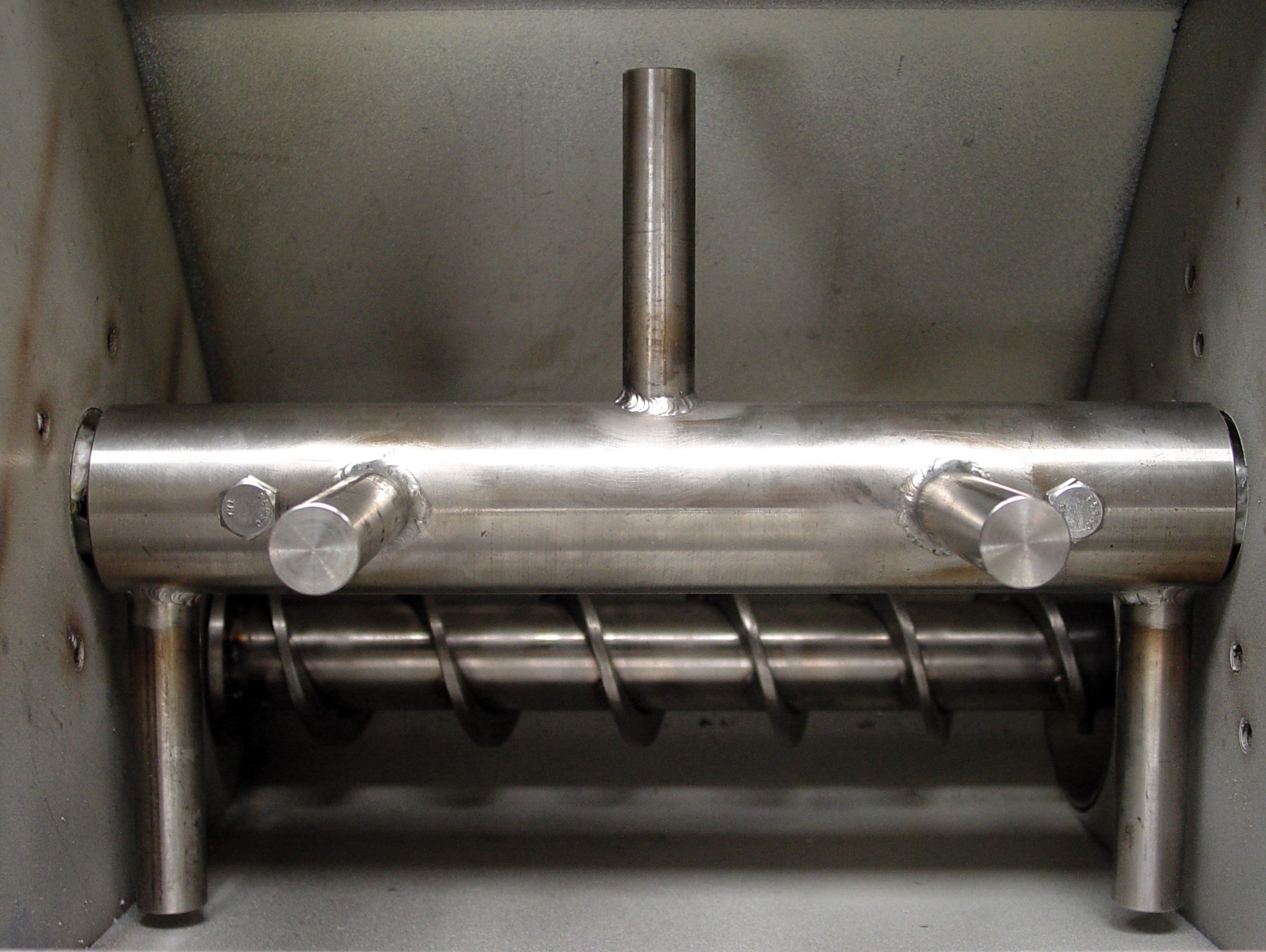

Model 2300 Spike Agitator Demonstration
Examples of Materials Bagged with this Machine
Mineral powders, cement powders, plaster, pigments, graphite
Powders
Specifications:
Bag filling weight range: 20-110 lbs. (9-50 kg)
Production rate: 1-5 bags per minute (material and bag size dependent)
Material density range: 20-75 lbs. (9-34 kg) per cubic foot
Operating modes: Semi- (operator assisted) or fully automatic
Bag types: Internal sleeve and/or tuck-in sleeve paper, plastic film, and poly woven bags
