Gravity Open Mouth Bag Filler
Model GB
Model GB Open Mouth Bag Filler is designed to bag granulated, free flowing materials in low production runs. It is very easy to use and reliable. A pivot beam mechanical scale with a weight indicator permits precise adjustments using counterweights. Simple pull lever controls are used to secure the bag to the scale and to adjust bag filling accuracy and speed. Model GB works without electricity or compressed air allowing it to be installed and operated virtually anywhere. An air operated clamp securely holds up to 70 lbs. bags from the loading spout.
Click Images for Larger Views

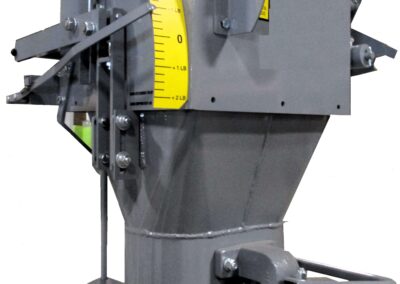

Model GB Front Left View

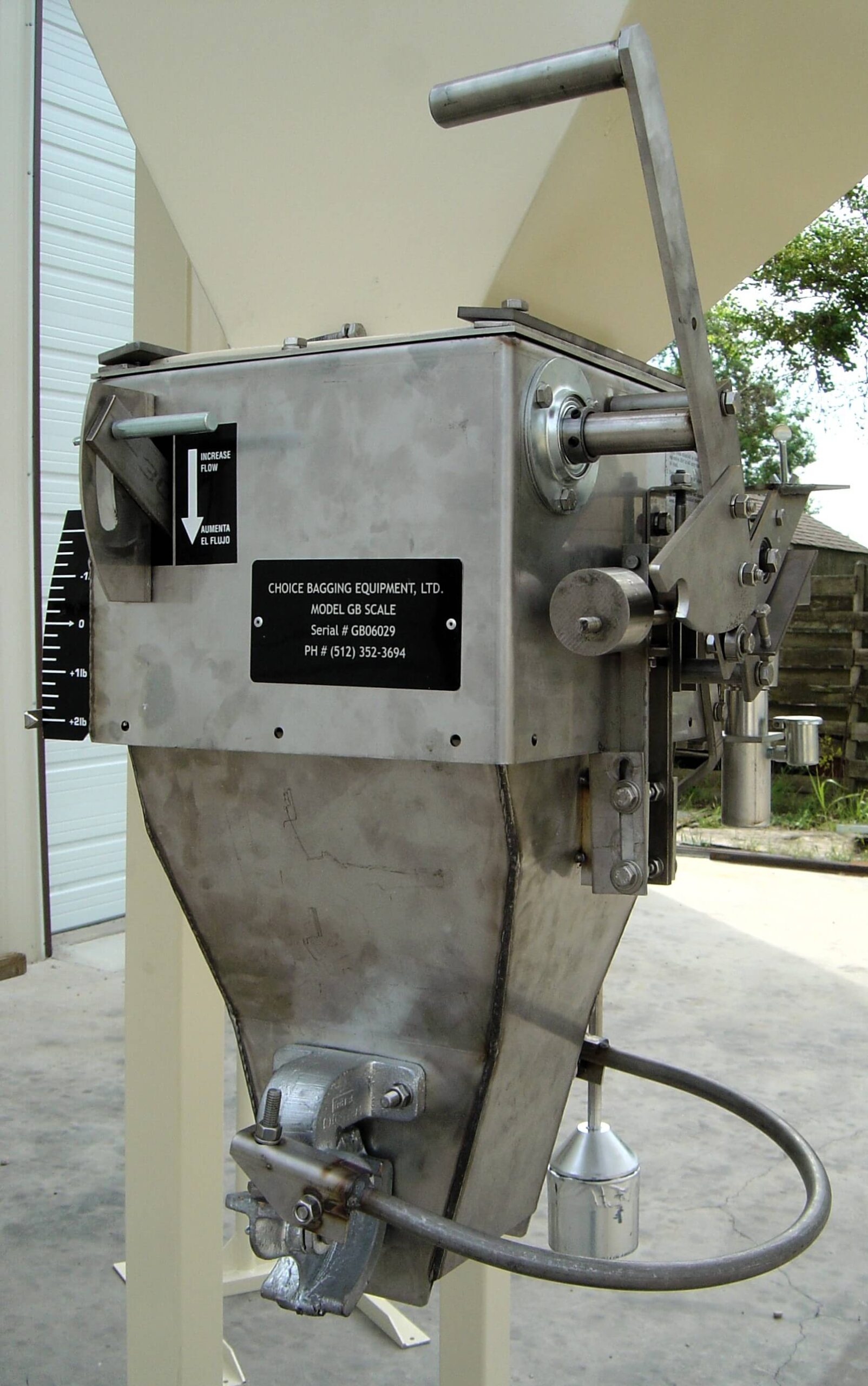

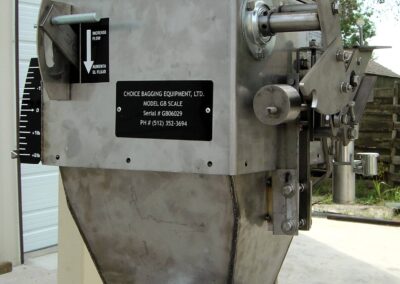

Model GB Front Right View

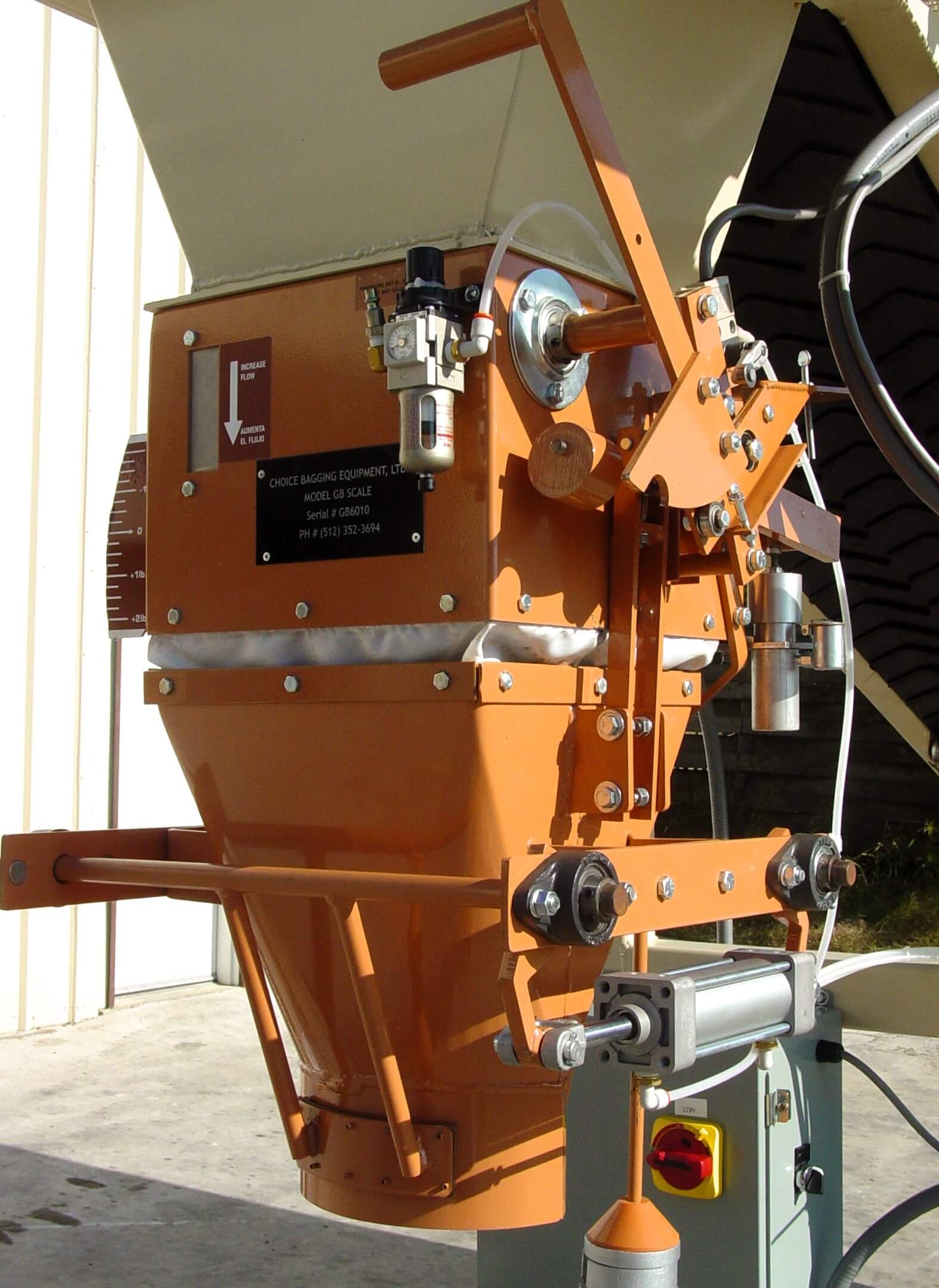

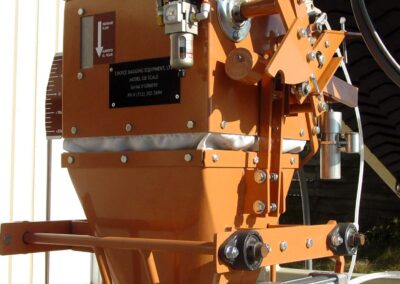

Model GB Right Front View

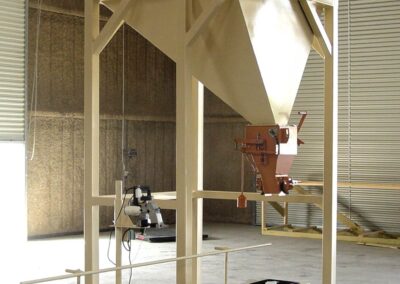

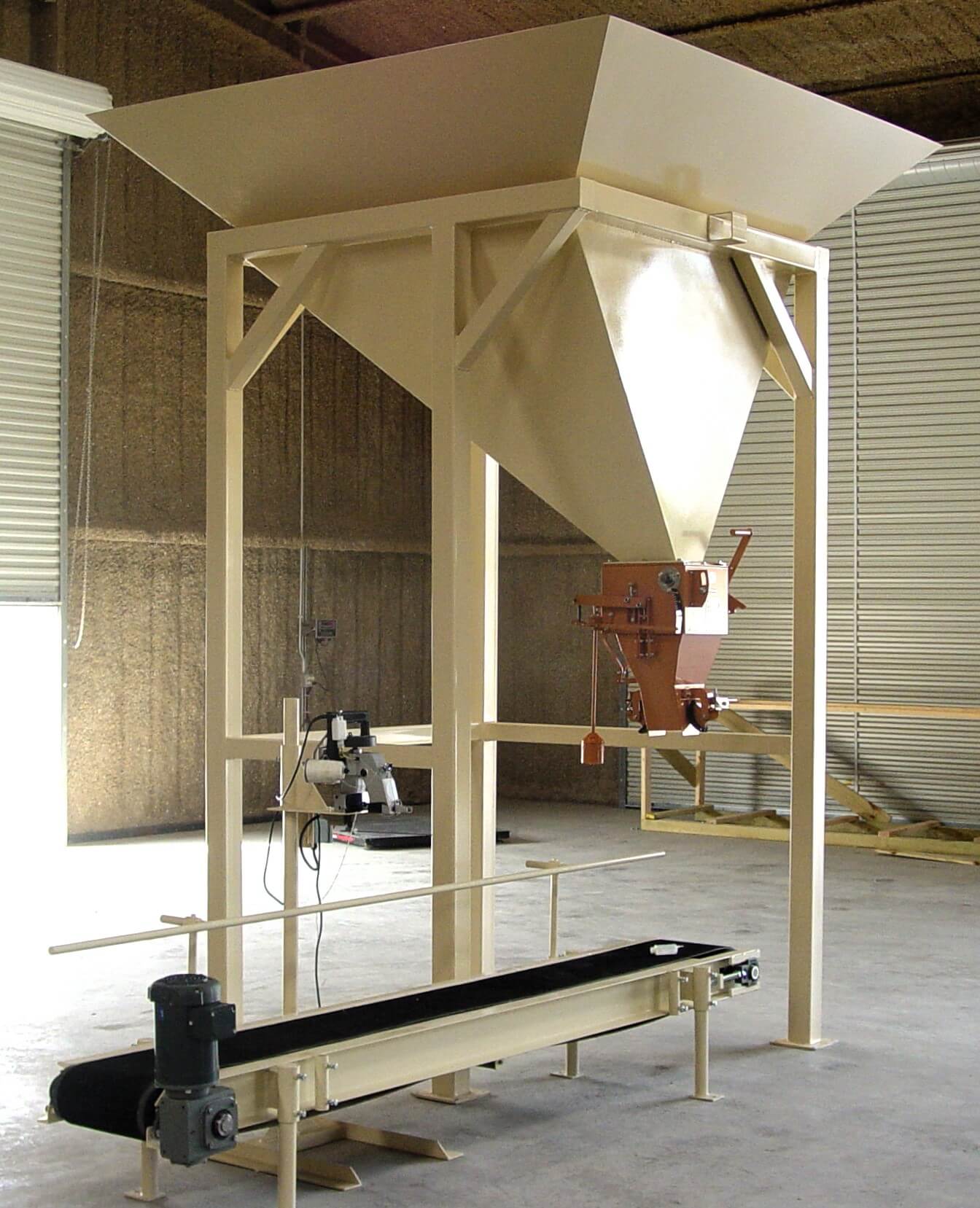

Model GB w Model 307 Bag Closing Conveyor
Examples of Materials Bagged with this Machine
Deer corn, hard grains & seeds, fertilizer, plastic pellets, sand (dry), pea gravel
Food
Small Particles
Minerals
Specifications:
Bag filling weight range: 20-70 lbs. (9-32 kg)
Production rate: 1-6 bags per minute (material and bag size dependent)
Material density range: 30-75 lbs. (13.68-34 kg) per cubic foot
Operating mode: Semi-automatic (operator assisted)
Bag types: Gusseted and non-gusseted paper, plastic film, and poly woven open mouth bags
