Valve Bag Filling Machines
Valve bag fillers are engineered to rapidly and accurately package a wide range of granular and powdered materials. Machines like this are typically used to bag cement, minerals, fertilizer, resins, chemicals, flour, sugar, starch, and wood. Valve baggers are also able to manage heavier loads starting at 20 lbs. up to 110 lbs. of material per bag. In addition to their versatility with substances and weight, they’re perfect for both low and high-volume production. That’s because valve bag fillers can be operated manually, semi-automatically, or as fully automated machines. Finally, they are very good at controlling spillage and dust emissions. This is due to their filling method of inserting a closely fitting spout into the bag valve or opening.
Standard Valve Bag Filling Machines

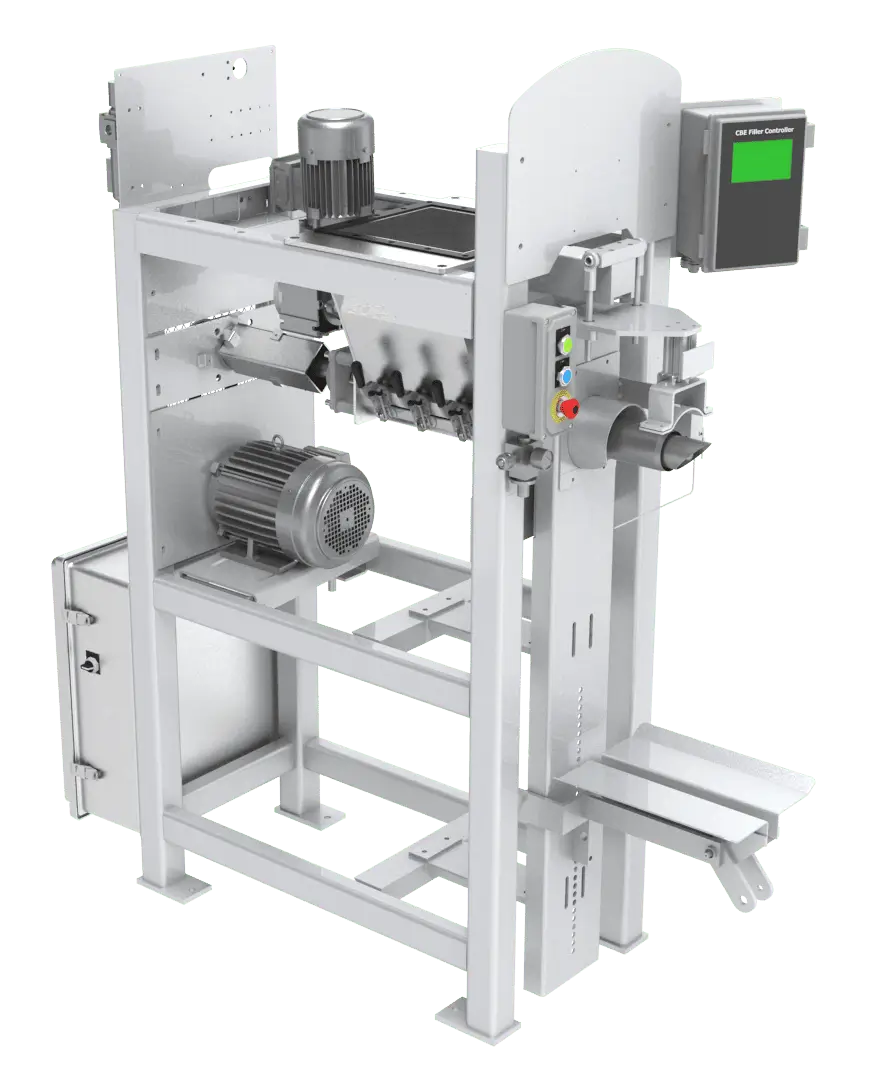

Clean-Duty Auger Valve Bag Filler Model 2050
This valve bag filler efficiently moves finely ground sanitary grade powders into valve bags. Ideal for applications requiring thorough equipment cleaning between uses.
Examples of materials this machine bags: flour, bakery mixes, cocoa, spices, pepper, animal grade pharmaceuticals, nutraceuticals, pigments, chemicals.
Fills up to 5 bags per minute.
(Note: combine up to 4 machines for higher rates)

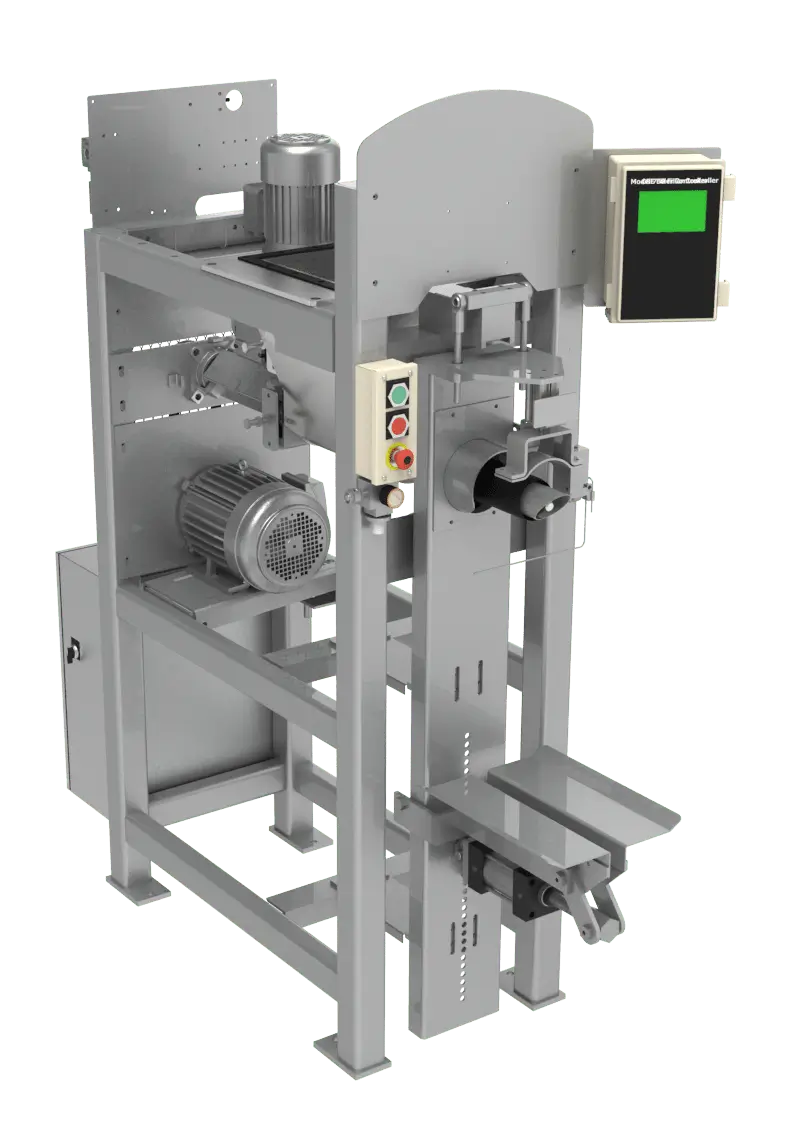

Industrial-Duty Auger Valve Bag Filler Model 2300
Packages a variety of finely ground industrial grade powders into valve bags. Designed for dependable performance in harsh, demanding environments.
Examples of materials this machine bags: mineral powders, cement powders, plaster, pigments, graphite.
Fills up to 5 bags per minute.
(Note: combine up to 4 machines for higher rates)
For filling a wide range of abrasives and high-density materials in valve type bags. Dependably packages abrasive products in harsh environments.
Examples of materials this machine bags: sand, garnet, concrete, stucco, limestone, granulated sugar, granulated salt, calcium carbonate.
Fills up to 10 bags per minute.
(Note: combine up to 4 machines for higher rates)
Dependable workhorse for clean, accurate filling. Bags a variety of powders, granules, pellets & powder / granule blends.
Examples of materials this machine bags: mortars, hydrated lime, gypsum, bentonite, barite, pigments, fertilizer, plastic pellets, plastic resins, calcium carbonate, starch, corn flour, oat flour, powdered sugar, hard grains.
Fills up to 10 bags per minute.
(Note: combine up to 4 machines for higher rates)
A vertical rotary vane valve bagger that cleanly & efficiently packs a range of industrial grade powders and powder / granule blends of moderate specific gravity.
Examples of materials this valve bagger supports: Portland cement, masonry cement, flyash, calcium carbonate, plaster, mortars, bentonite, gypsum.
Fills up to 8 bags per minute.
(Note: combine up to 4 machines for higher rates)
Horizontal rotary vane valve bag filler cleanly & efficiently packages many kinds of pulverized powders of light density / specific gravity.
Examples of materials this machine bags: talc, kaolin clay, hydrated lime, hydrated alumina, graphite, carbon black, activated carbon, silica fume, rice hull ash.
Fills up to 8 bags per minute.
(Note: combine up to 4 machines for higher rates)

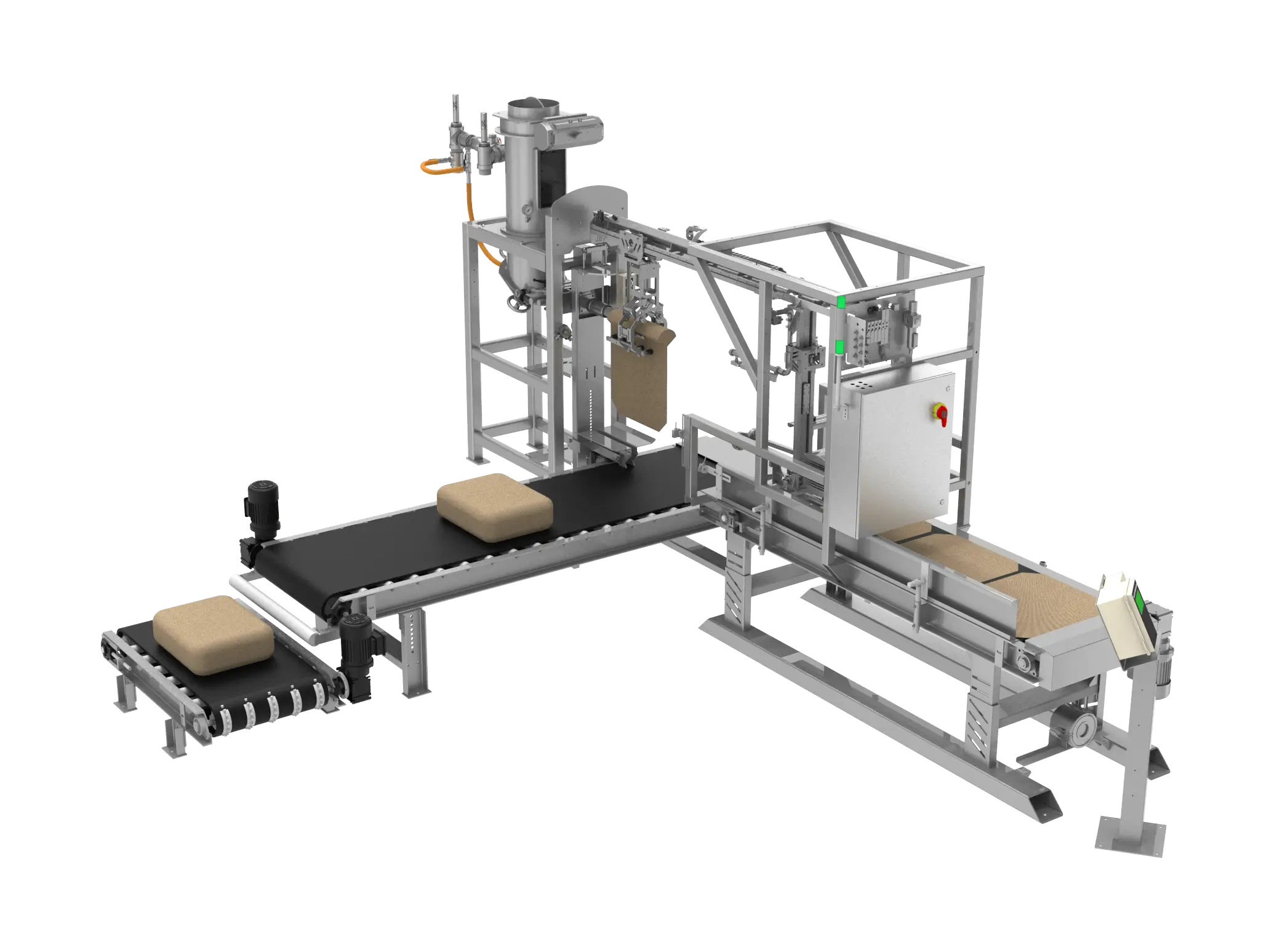

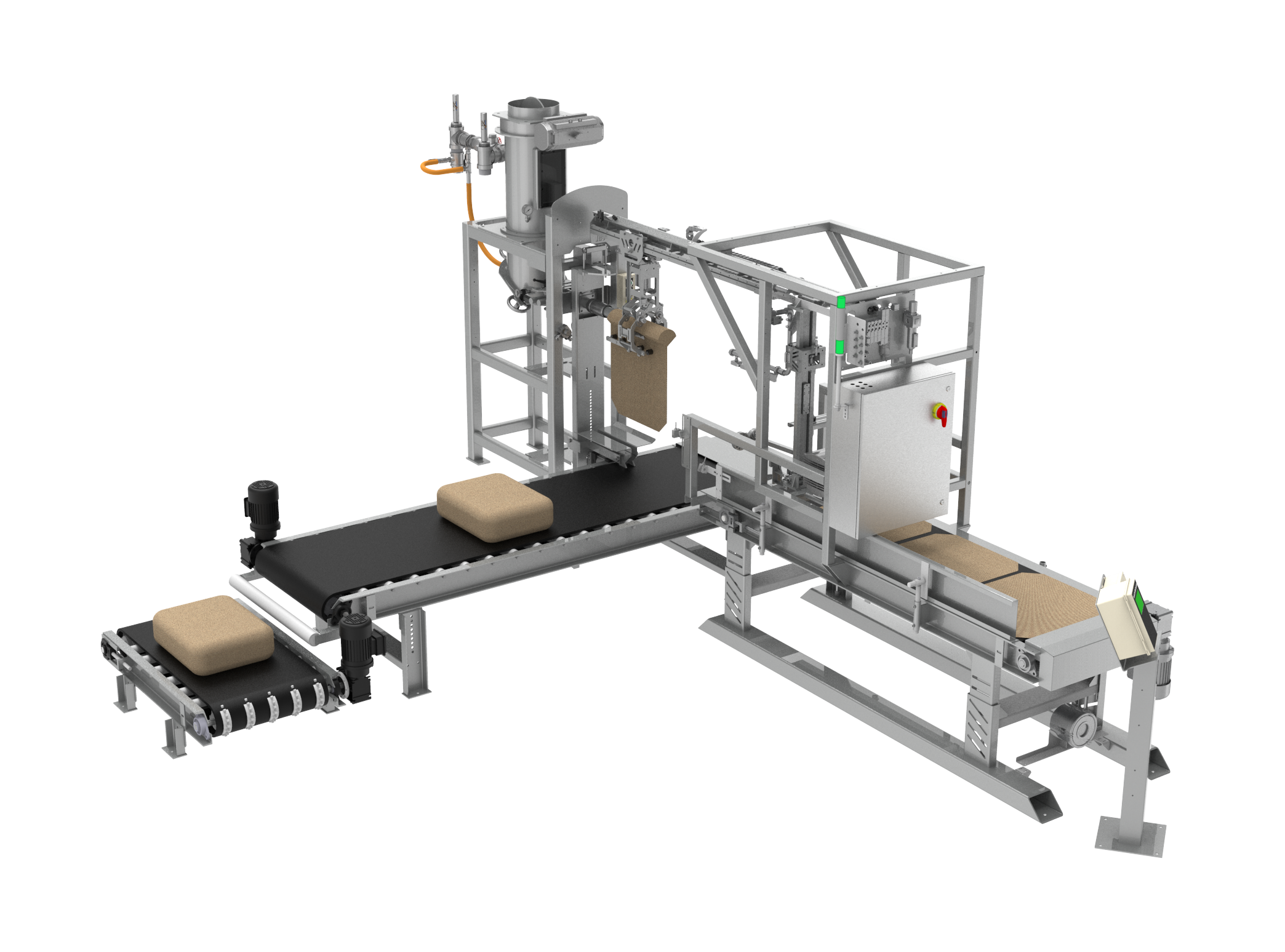

Automatically places valve bags on filler spouts and can be integrated with any CBE valve bag filler model.
(Note: combine up to 3 machines to achieve higher bagging rates)
Valve Bag Fillers for Specialty Applications

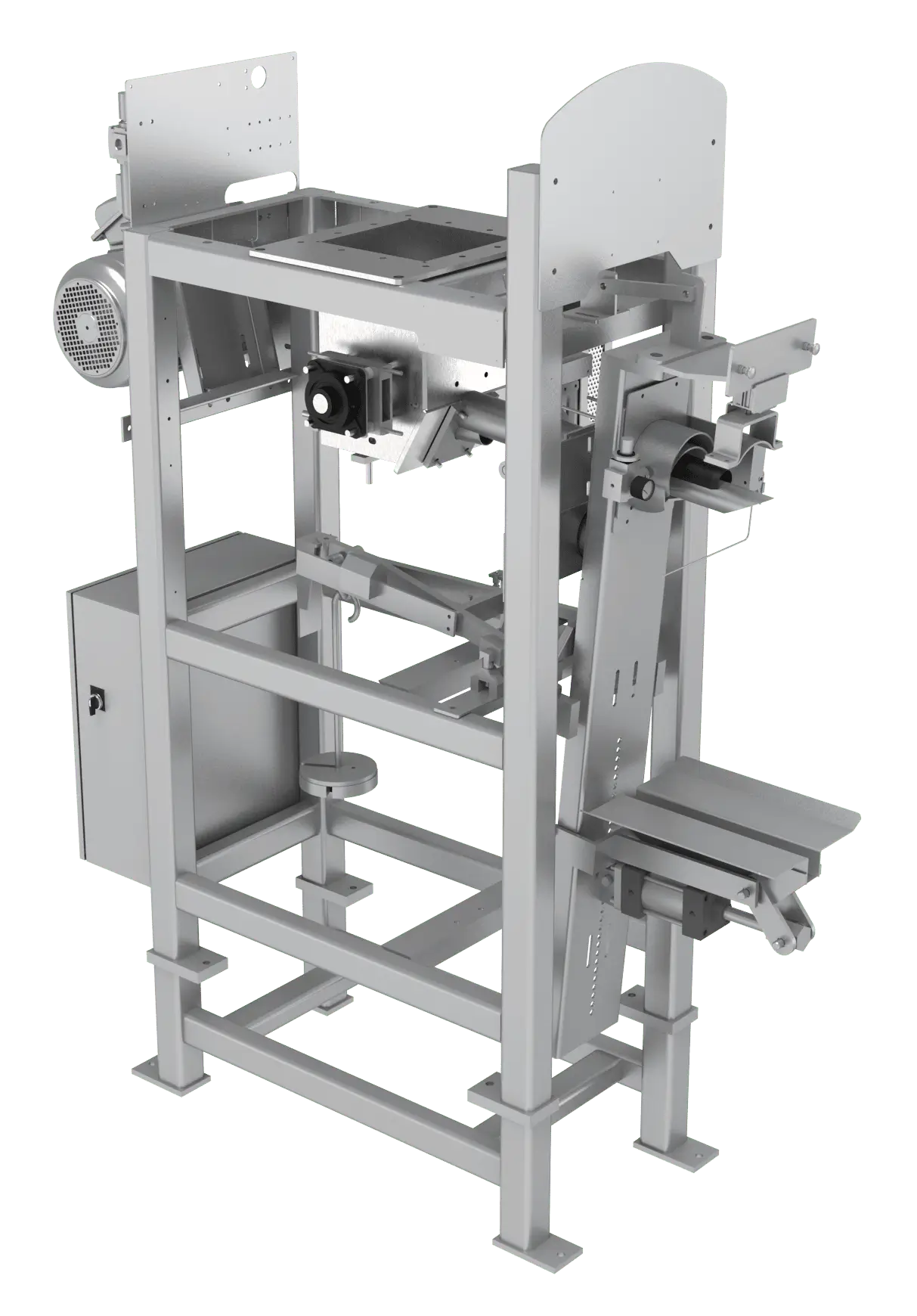

Mechanical Vertical Impeller Valve Bag Filler Model 8400
Bags a wide range of powders & powder / granule blends. Designed for commodity products at high speeds.
Examples of materials this machine bags: Portland cement, masonry cement, flyash, calcium carbonate, plaster, mortars, bentonite, gypsum.
Fills up to 14 bags per minute.
(Note: combine up to 3 machines for higher rates.)
Mechanical Forced Air Valve Bag Filler Model 7700
Fills moderate density powders and powder / granule blends in valve bags. Vertical rotary vane packs cleanly and efficiently.
Examples of materials this machine bags: sand, garnet, concrete, stucco, limestone, granulated sugar, granulated salt, calcium carbonate.
Fills up to 8 bags per minute.
(Note: combine up to 3 machines for higher rates)
Bags and seals many types of finely ground sanitary grade powders. Ideal for applications requiring cleaning between uses.
Examples of materials this machine bags: flour, bakery mixes, cocoa, spices, pepper, animal grade pharmaceuticals, nutraceuticals.
Fills up to 3 bags per minute.
(Note: combine up to 3 machines for higher rates)

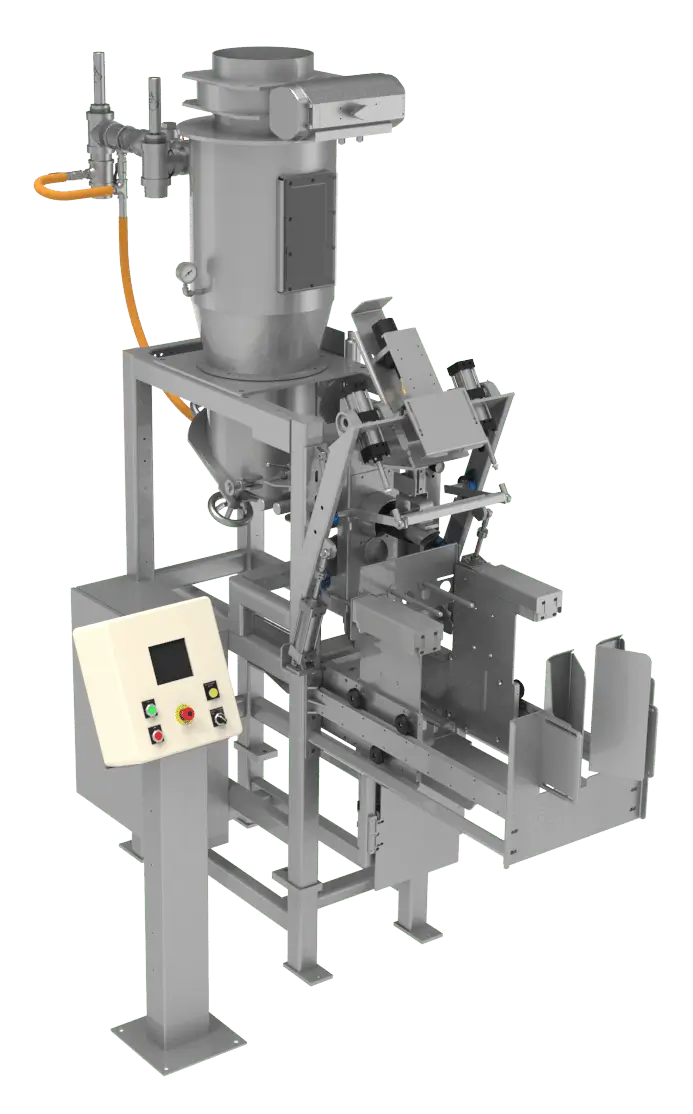

Sonic Seal Forced Air Valve Bag Filler Model 7550
Bags and seals powders, granules & powder / granule blends. Handles products gently.
Examples of materials this machine bags: starch, corn flour, oat flour, powdered sugar, calcium carbonate, pelleted carbon black, activated carbon, copper sulphate, pigments, plastic pellets, resins & chemicals powders.
Fills up to 3 bags per minute.
(Note: combine up to 3 machines for higher rates)
What are Valve Bag Fillers and what Types of Bags do They Use?
Valve bag fillers use pre-formed bags with a fill spout, or valve, in one corner for fast and easy filling. After the bag is filled, the valve’s inner flap functions as a self-closing check with no secondary sealing required. On a worldwide basis, the versatile valve bag is used more than any other bag type. This is because the valve sleeve can be manufactured in a variety of styles for different applications. They include poly, tuck-in, heat seal, and sonic-seal valve sleeves. Valve bags can also be equipped with PE-free film or PE-liners when enhanced moisture protection is needed. Valve bag fillers from Choice Bagging are capable of filling 20-110 lb. (9-50KG) valve bags. They package flaked, powdery, or granular products at rates up to 24 bags per minute or 1,440 per hour.
Applications & Names for Valve Bag Fillers
Valve bag filling machines are most commonly used to bag many different types of products. These include cement, concrete, minerals, fertilizer, resins, chemicals, flour, starch, feed, salt, sugar and wood. Frequently, valve bag fillers are referred to by names such as valve bag packing machines, valve bag packers, or air packers.
Examples of Materials Packaged with Valve Bag Fillers:
Building Materials
Cement, Concrete, Stucco, Grout, Plaster, Sand, Refractories
Food Products
Flour, Sugar, Salt, Cake Mixes, Cocoa, Spices, Bakery Mixes
Industrial Minerals
Graphite, Garnet, Barite, Bentonite, Gypsum
Agricultural
Feed, Seed, Fertilizer,
Wood Pellets
Chemicals
Plastic Pellets, Fertilizer, Hydrated Lime, Zinc Oxide, TIO2, Iron Oxide, Carbon Black
The 3 Types of Valve Bag Fillers
Air Packer Valve Bag Fillers:
Air Packers are occasionally referred to as Forced Flow or Pneumatic Packers. These valve bag fillers are often used to fill bags with free-flowing, low humidity materials. They include dry flakes, powders, and small-sized granules that cannot be heated, ground, or crushed.
Applications:
- mortars
- sugar
- calcium carbonate
- PVC pellets
- limestone
Impeller Packer Valve Bag Fillers:
Sometimes called Turbine Packers, Impeller Packers are valve bag fillers used for dry, fine, high bulk density powders. This includes materials that are 200 mesh or finer where crushing or fineness are not concerns.
Applications:
- fly ash
- carbon black
- portland and masonry cement
- kaolin
- clay
- graphite
- silica
- activated carbon
Auger Packer Valve Bag Fillers:
Often called Screw Baggers, Auger Baggers are designed for flakes, powders, pellets, granules, and fibrous material.
Applications:
- cellulose
- fiber
- compost
- flour
- insulation
- limestone
- minerals
- pepper
- pigment
- plastic pellets
- resins
- crumbled rubber
- salt
- sand
- sawdust
- bakery mixes

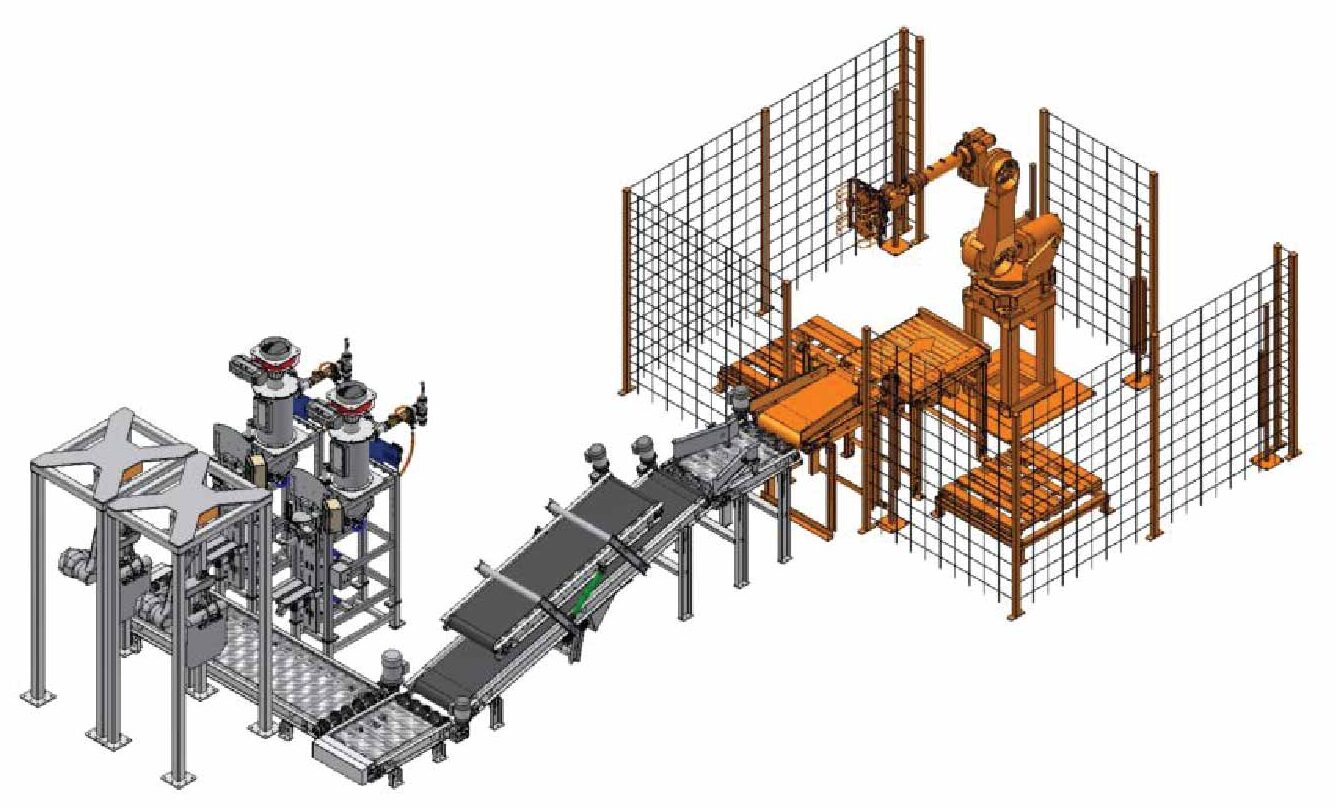

Advanced Systems with Valve Bag Filling Machines
For high-volume production environments, bagging systems are configured with multiple valve bag filling machines in a row. These lines can also be supplemented with automatic bag placers and automated robotic bag palletizing systems. Systems like this can bag and stack up to 1,440 bags per hour, per line.
Further automation can be achieved with bag flattening conveyors, weight checkers, printers, metal detectors, and non-conforming bag rejection conveyors. Stretch film pallet wrappers are also helpful for load protection after bag palletizing. When optimally designed, systems like this reduce reliance on human labor and offer vastly increased productivity.
We Can Help You Choose a Valve Bag Filler
Choosing the correct valve bag filler for your needs is a massive challenge to undertake. Fortunately, the bagging machine experts at CBE can help you make the best decision based on your specific requirements.
