Sonic Seal Auger Valve Bag Filler
Model 2450
The Sonic Seal Auger Valve Bag Filler combines the rapid cleaning benefits of our Clean Duty Auger Fed Valve Bag Filler with an automatic bag sealer. Model 2450 can bag and seal a variety of powders requiring rapid clean out between runs. The machine uses ultrasonic technology to quickly close and discharge bags bottom end first. It is ideal for sanitary uses or for any need where cross-contamination must be prevented. Interior moving parts such as the auger and agitator blades are deftly removed for cleaning and inspection.
Click Images for Larger Views

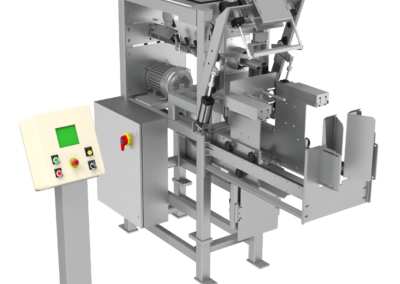

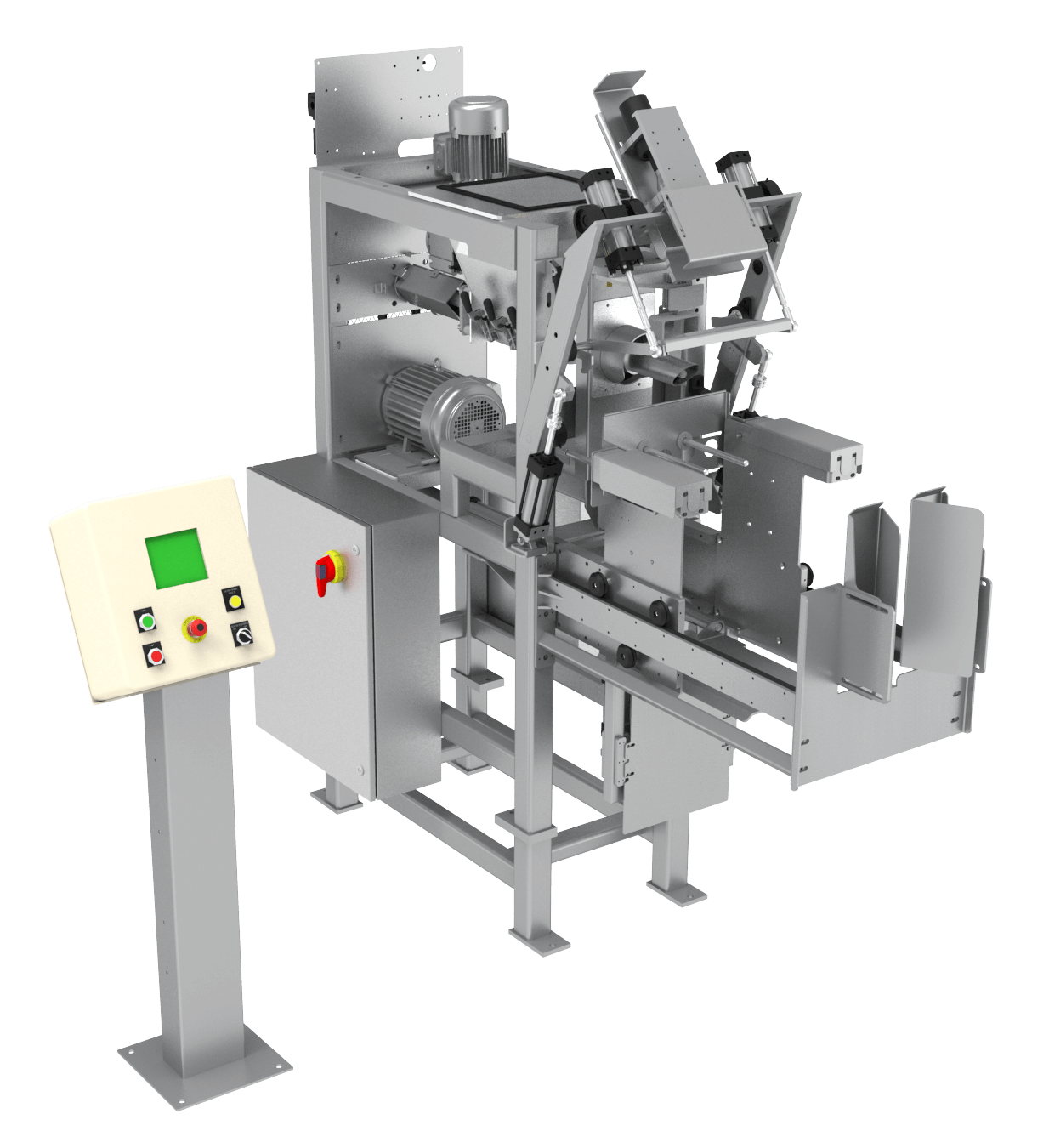

Model 2450 Front Left View

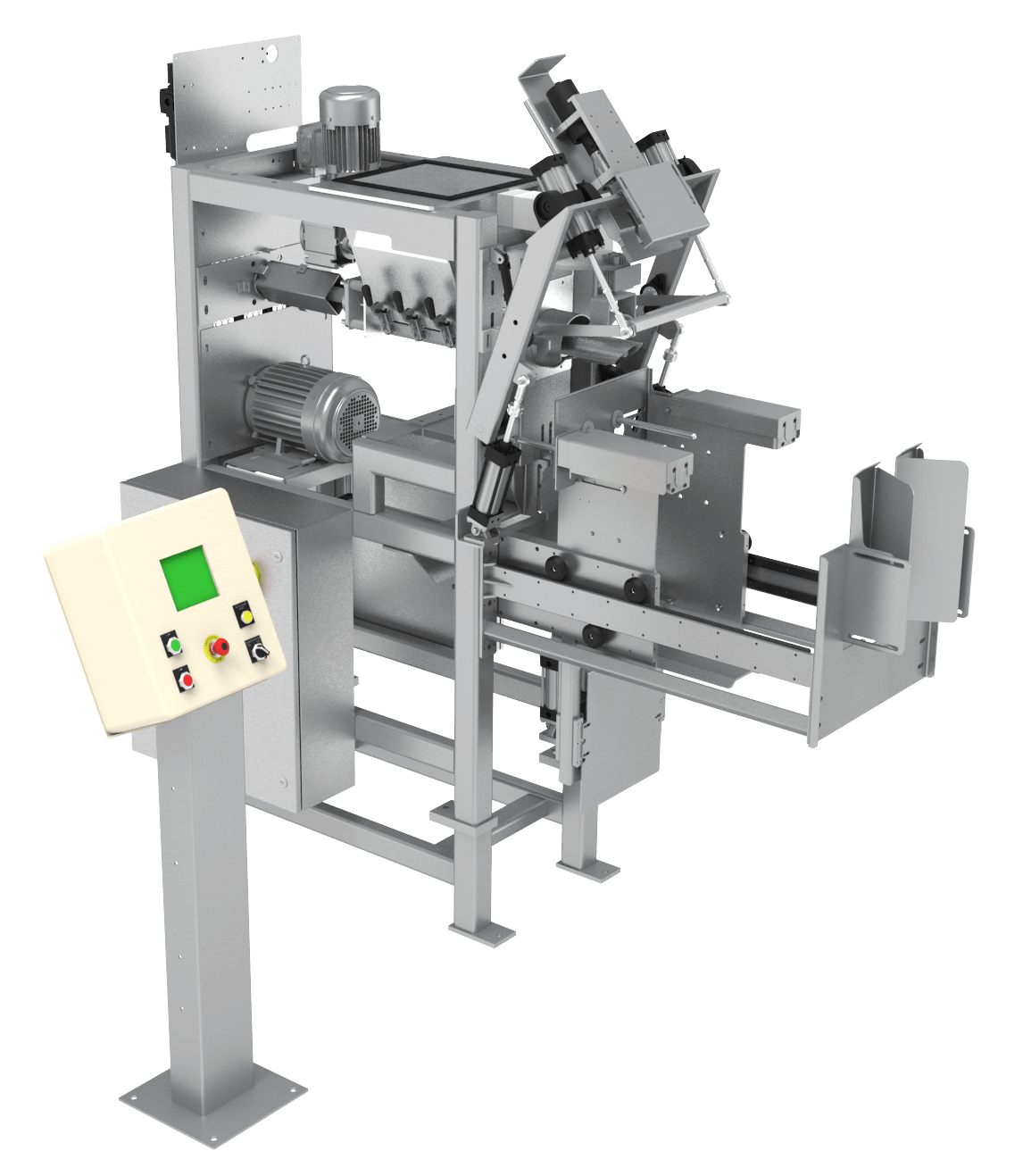

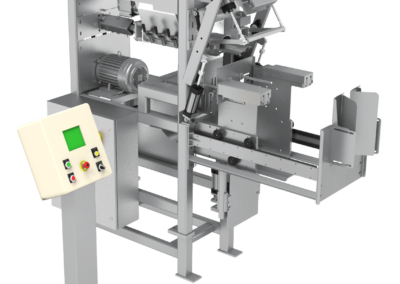

Model 2450 Left Side View

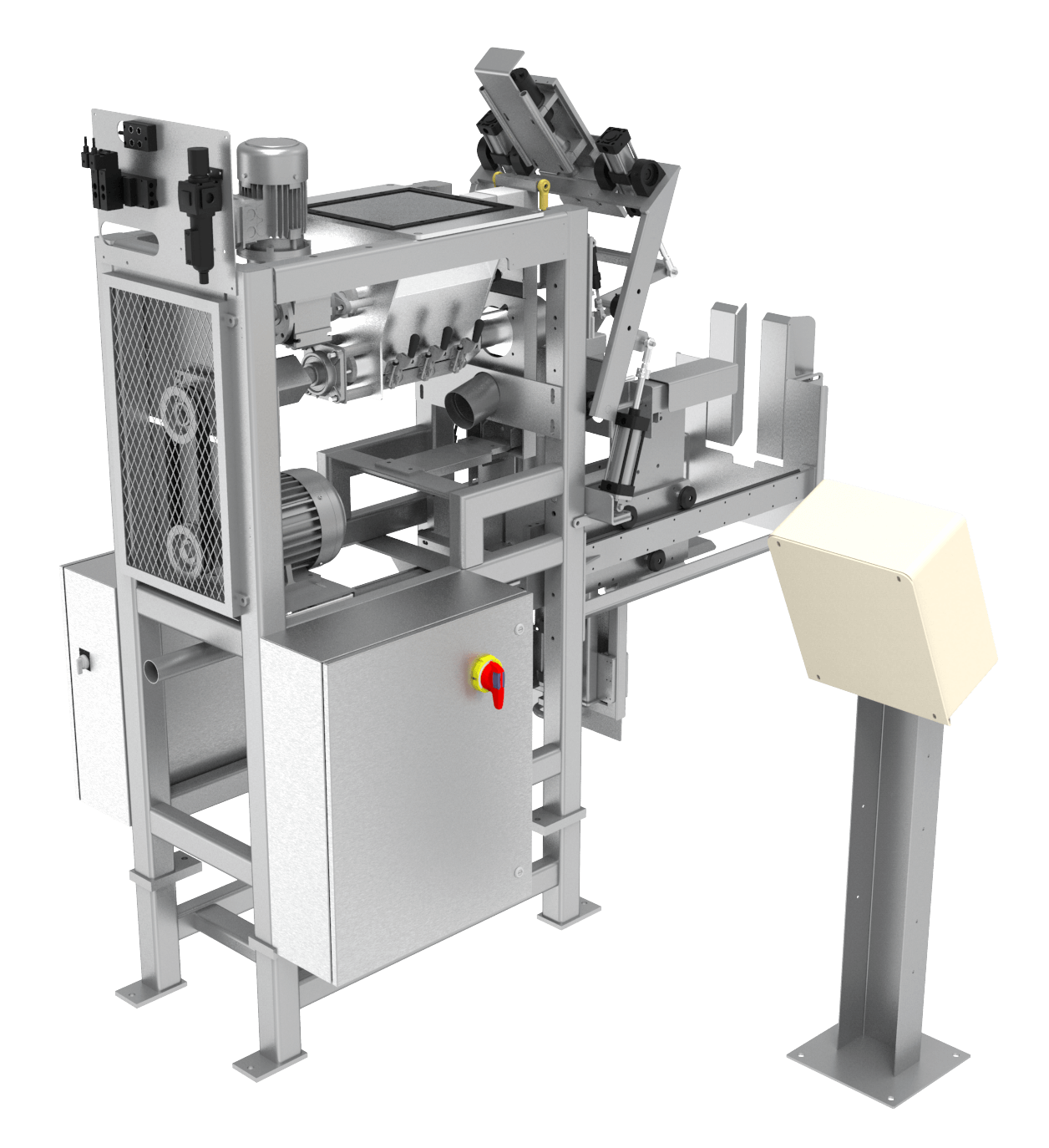

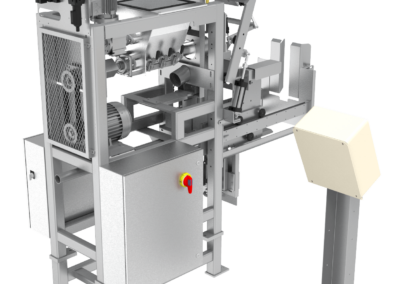

Model 2450 Rear Right View

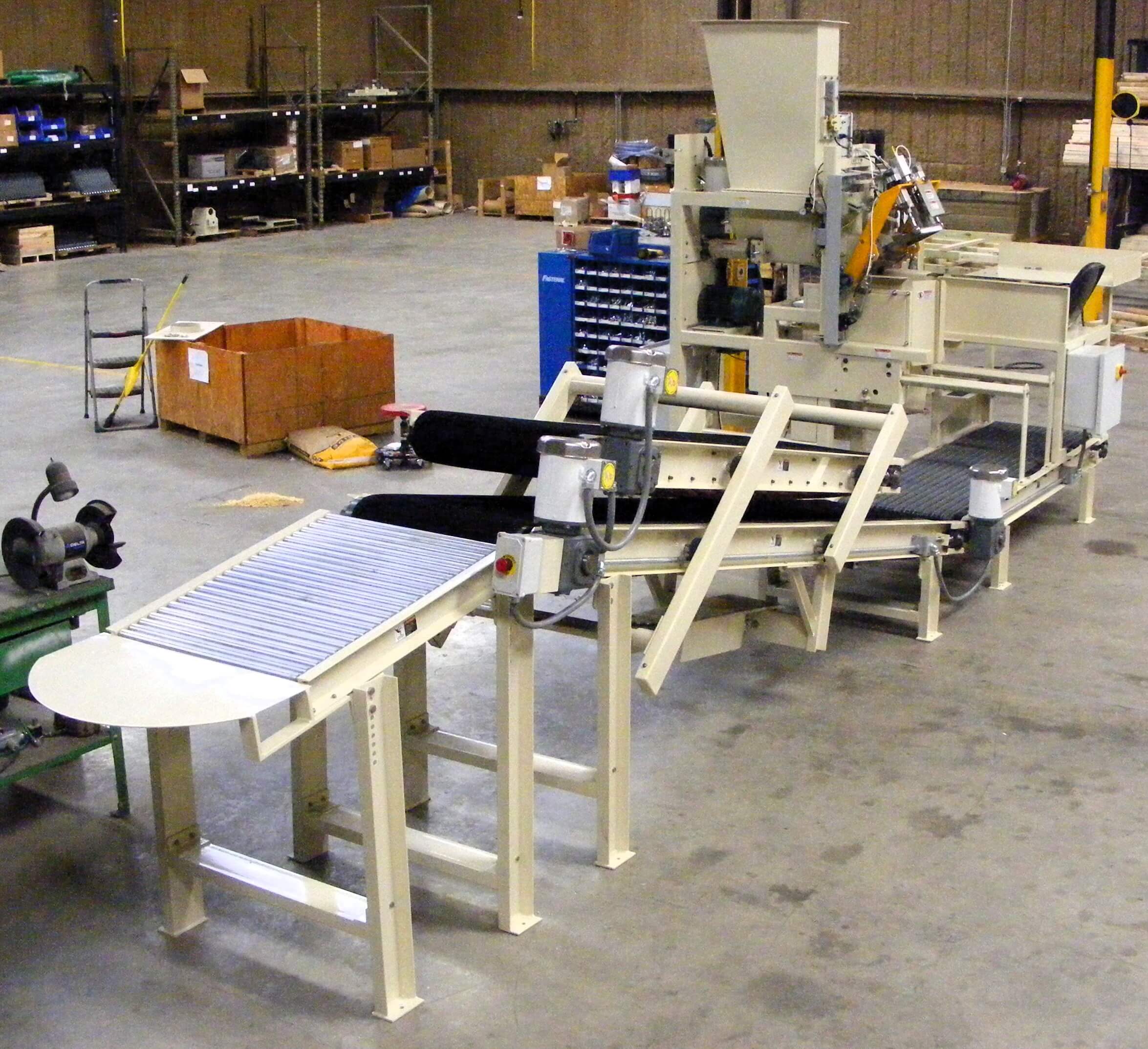

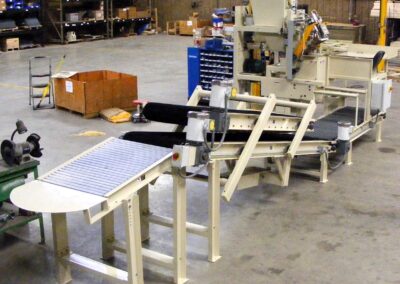

Model 2450 System w Bag Discharge & Flattener Conveyors

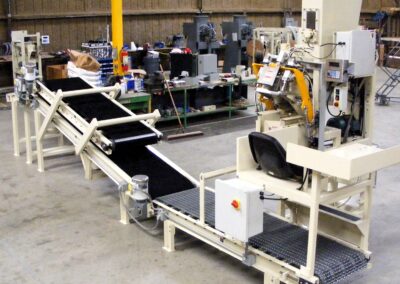

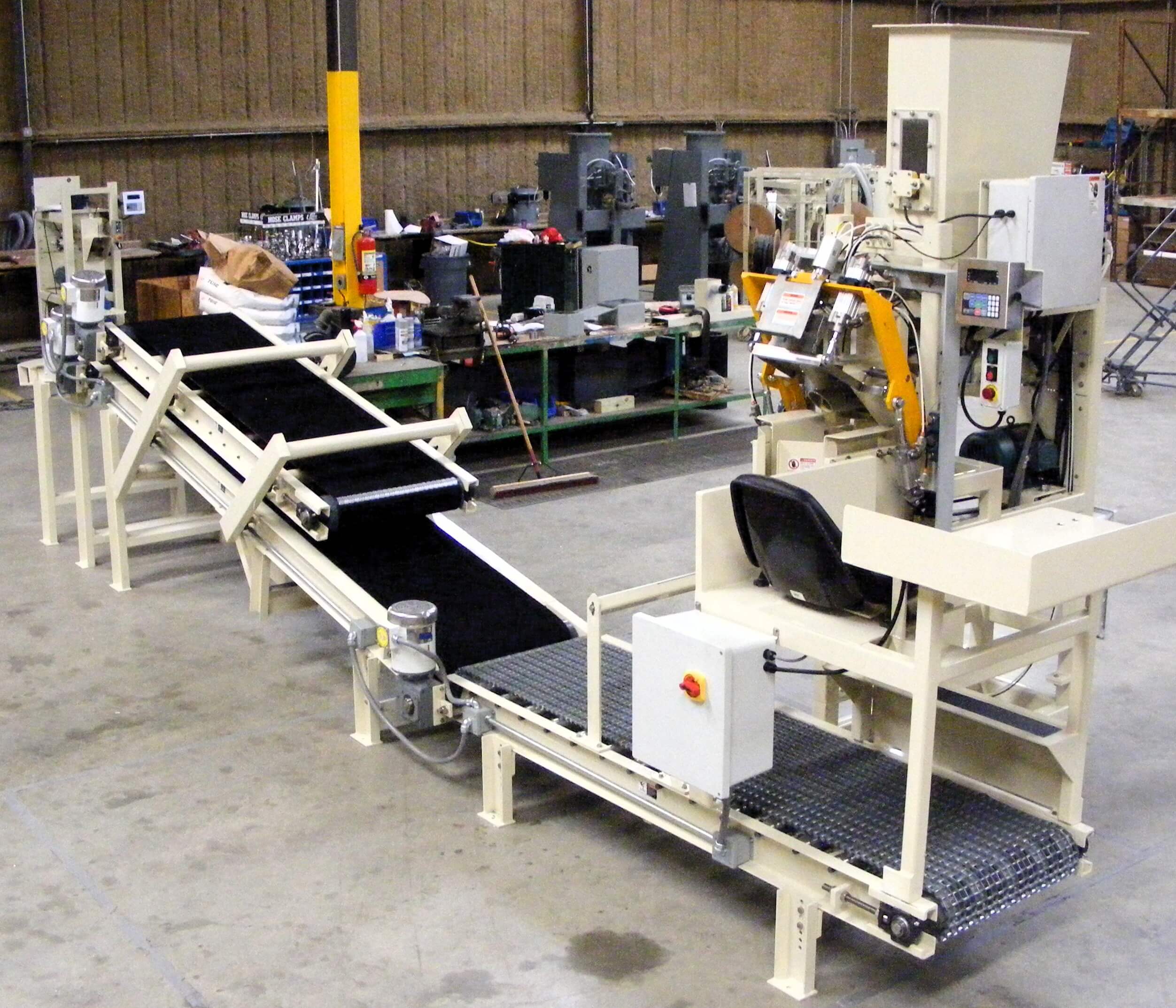

Model 2450 System w Bag Discharge & Flattener Conveyors 2

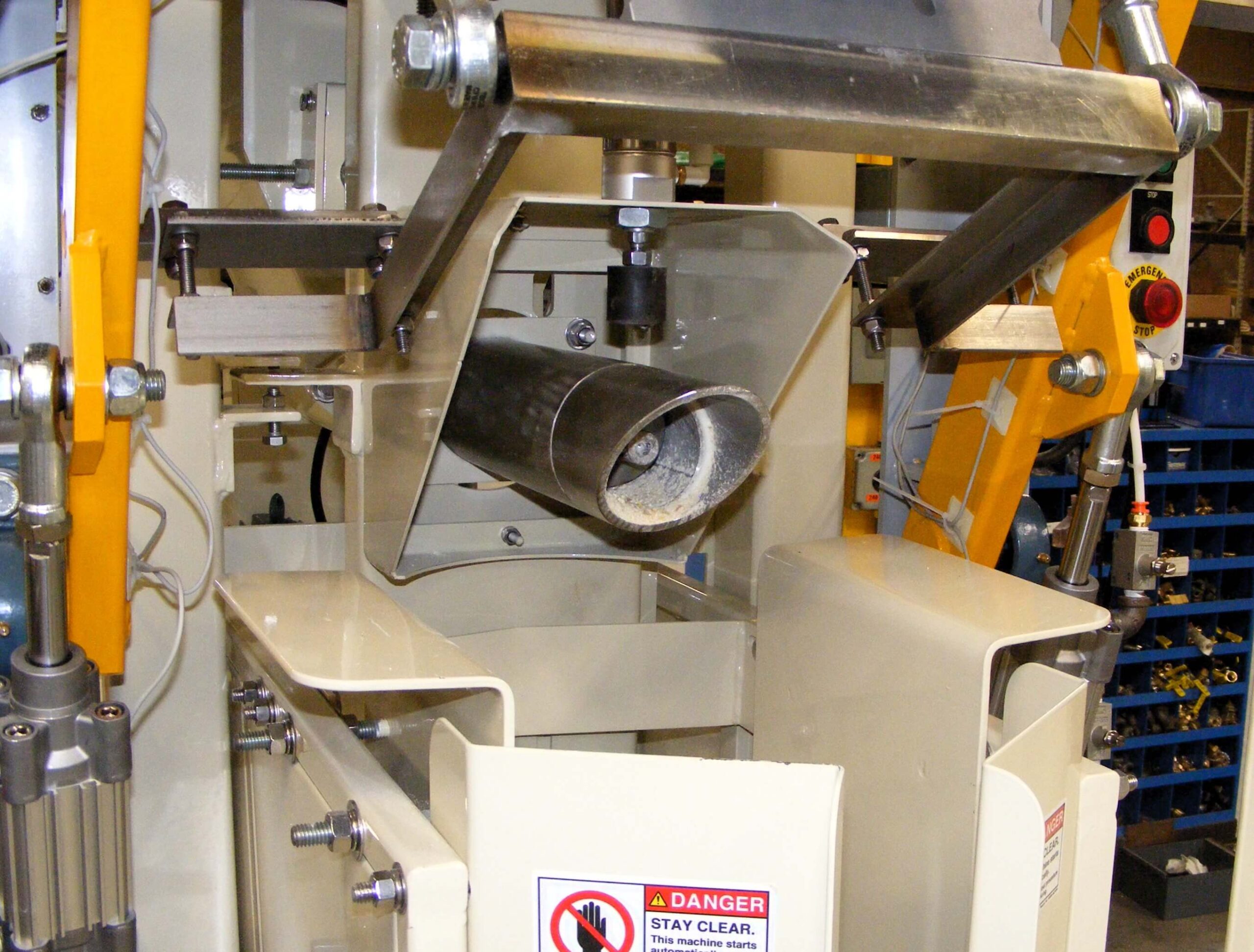

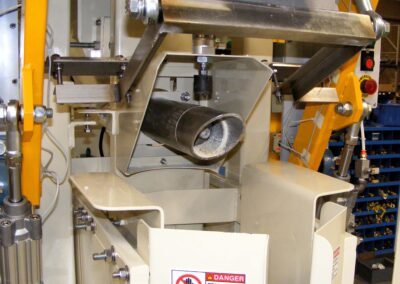

Model 2450 Fill Spout
Click to View Videos
Model 2450 Bagging Copper Sulfate with Automatic Bag Placer
Model 2450 Bagging Animal Feed with Bag Sealer Discharge
Model 2450 Bagging Chicken Breading
Model 2450 Quick Change Auger Assembly
Examples of Materials Bagged with this Machine
Flour, bakery mixes, cocoa, spices, pepper, animal grade pharmaceuticals, nutraceuticals
Powders
Specifications:
Bag filling weight range: 20-110 lbs. (9-50 kg)
Production rate: 1-3 bags per minute (material and bag size dependent)
Material density range: 20-75 lbs. (9-34 kg) per cubic foot
Operating modes: Semi- (operator assisted) or fully automatic
Bag types: Sonic sleeve paper and plastic film
